Assignment 5- Natural shapes

1. Original curves and reference point in rhino file.

2.Grasshopper scripts

3. Object in Makerware : High quality + NO raft + NO support



4. Object in 3d process

Assignment 4- Assemble

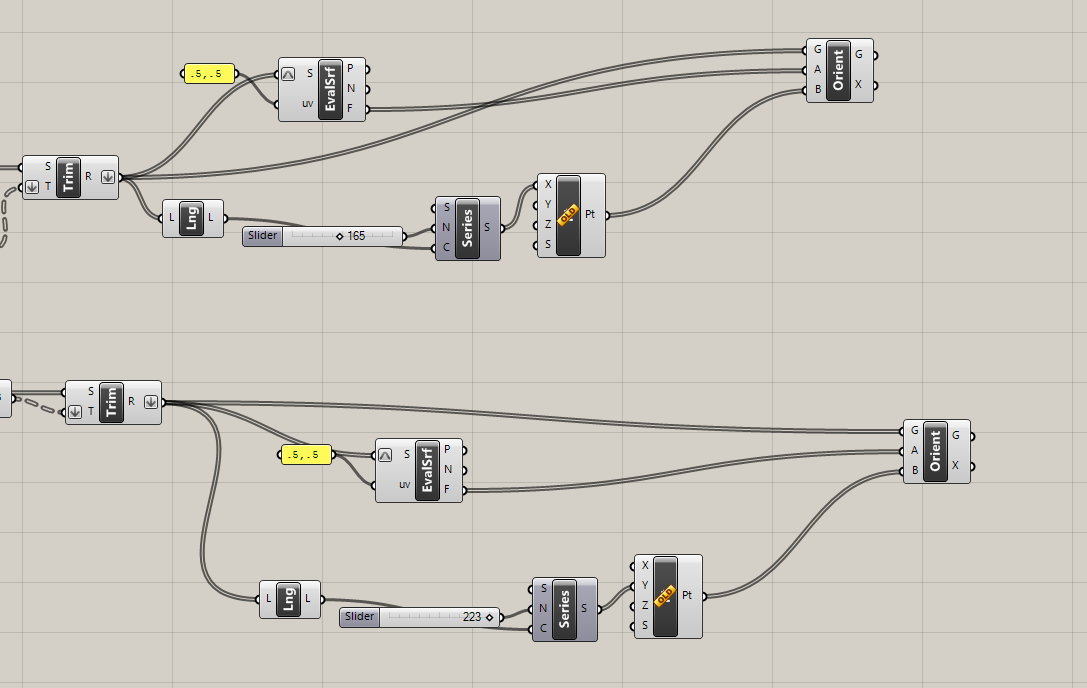

 Script for my object's joint

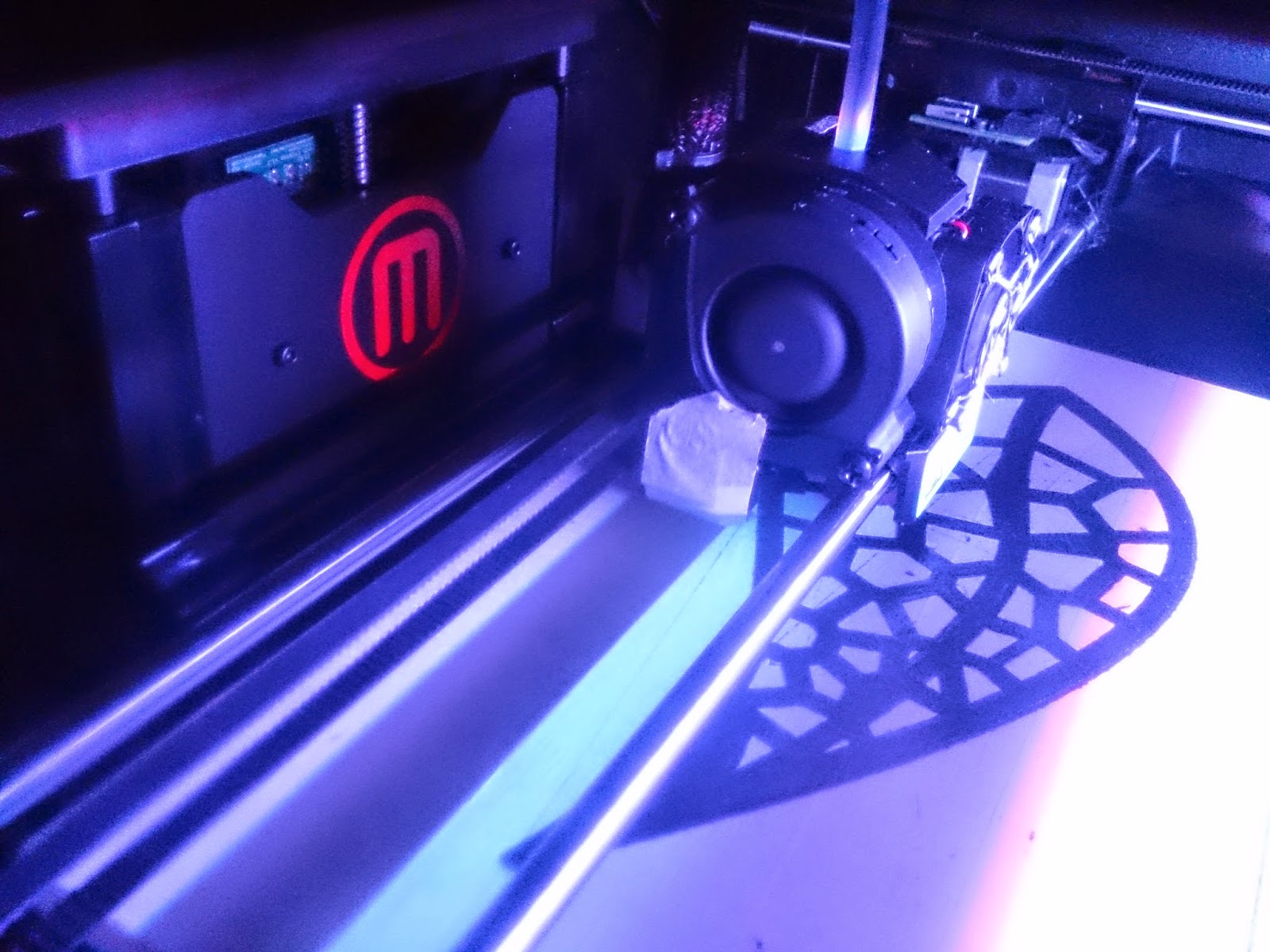

3D printing in process:

3D printer's 1st failure:  machine jam. from the unfinished product, I realized that raft parts cannot be removed, so it is better not to tick the "raft" function.

3D printer's 2nd and 3rd failure:  machine cannot melt filament continuously, some layers were missing.

Script for my object's planar elements

1. Create surface in rhino

 2. Use grasshopper to extrude the surface and hollow two circles (for above two strips to go through)

 3. Create Bounding Box and set up series of planes for slicing

 4. Bake the model for laser-cut

Snapshot of Ai file

 And  my entire script is shown below:

Expected finished object
(Black rod:3D printed; Timber texture plate: 3mm Laser-cutted plywood sheets )

Assignment 3- Waffling experiment

1.Waffling Script

2. Laser cutting part

3. Laser cut in process (snapshot of Ai file)

Try different settings (material thickness, power level, cutting speed...) for laser-cut machine, one of it got burned.

Second option for Assignment 2

Assignment2-Grasshopper for 3D printing

1. "Divide" two curves

2. "SHIFT" all divided points and connect them to get the nest pattern and use ''Move'' function to make more layers (or duplicate series of same script group to increase the thickness of object) if needed.

3. Simply use "Pipe" tool to manipulate a 3D object.

4. Put in the MakerWare

Assignment1- Grasshopper for Laser cutting

Grasshopper script

Edit illustrator file and draw the pattern on them

Simple letter L with ai files
